Decoding Electrical Safety

1. Understanding the Basics of Electrical Protection

Okay, let’s talk about electricity. Sounds thrilling, right? Maybe not, but staying safe around it definitely is! Two acronyms you might stumble upon in the electrical safety realm are RCCB and ELCB. These gadgets are designed to protect you from electric shock, but they work in slightly different ways. Think of them as superheroes of the electrical world, each with their unique powers and weaknesses. Which one is the ultimate guardian of your home or workplace? That’s what we’re about to explore.

First, let’s define our champions. An ELCB, or Earth Leakage Circuit Breaker, was one of the earlier forms of protection. It operates by detecting current leakage to earth. If there’s a difference between the current going in and the current returning, the ELCB trips, cutting off the power supply. This type of breaker is generally voltage operated.

Now, enter the RCCB, or Residual Current Circuit Breaker. This is the more modern and widely used option. An RCCB detects imbalances in the current flowing through the live and neutral wires. Even a small imbalance (a residual current) indicates a potential leakage, and the RCCB quickly jumps into action, disconnecting the circuit. RCCBs are current operated devices.

So, whats the big deal? Why all the fuss about these two? Well, the devil is in the details. Let’s dive deeper into their differences and find out which one really deserves a spot in your electrical panel.

Cnc, Living Skills, Electrical Projects, Breakers, Circuit, Devices

ELCB

2. A Closer Look at ELCB Technology

Let’s journey back a bit and explore the ELCB in more detail. ELCBs were designed to detect earth leakage based on voltage changes. This means that an ELCB relies on a dedicated earth wire to function correctly. When a fault occurs, and current leaks to earth, the ELCB senses the voltage on the earth wire and trips if it exceeds a certain threshold. This voltage threshold usually around 50V.

One of the critical requirements for ELCBs to function safely is that the earthing system must be proper. The earth wire must have a low resistance path back to the source so when the resistance is low it can generate a detectable current. The reliability of ELCBs depends heavily on the quality of the earthing system. If the earthing is poor, the ELCB might not trip even when a dangerous fault occurs. This is a significant limitation.

Another disadvantage of ELCBs is that they can sometimes be nuisance tripped. This means that they might trip even when there isn’t a genuine fault, perhaps due to minor voltage fluctuations or electrical noise in the system. Nuisance tripping can be annoying and disruptive, especially in critical applications where power outages can have serious consequences.

Despite their drawbacks, ELCBs were a significant advancement in electrical safety when they were first introduced. They provided a level of protection that wasn’t available before, and they helped to reduce the risk of electric shock. However, with the advent of more advanced technologies like RCCBs, ELCBs have largely been superseded.

What Is The Difference Between RCCB And ELCB?

RCCB

3. Exploring the Advantages of RCCB Technology

Now, let’s shift our focus to the RCCB. Unlike the ELCB, which relies on voltage detection, the RCCB uses a current-operated principle. It constantly monitors the current flowing through the live and neutral wires. In a healthy circuit, the current flowing in should be equal to the current flowing out. If there’s a difference, it indicates that some current is leaking to earth, and the RCCB immediately trips, cutting off the power supply.

One of the biggest advantages of RCCBs is their high sensitivity. They can detect very small leakage currents, typically in the range of 30mA (milliamperes) or even lower. This makes them much more effective at preventing electric shock than ELCBs, which typically have a higher tripping threshold. Because the RCCB’s threshold is much more sensitive, the time someone is subjected to a potentially dangerous leakage is greatly reduced.

Furthermore, RCCBs are less reliant on the quality of the earthing system. While a good earth connection is still important for overall electrical safety, the RCCB will still function correctly even if the earthing is not perfect. This is because it detects the imbalance in current flow, regardless of how the leakage current returns to the source. This makes RCCBs a more reliable option in situations where the earthing system is not well-maintained.

In addition to their superior performance, RCCBs are also generally more resistant to nuisance tripping than ELCBs. They are less likely to be affected by voltage fluctuations or electrical noise, which means that they provide a more stable and reliable level of protection. This reliability makes them the preferred choice for modern electrical installations. So, RCCBs are more reliable and a better choice for protecting the electrical system.

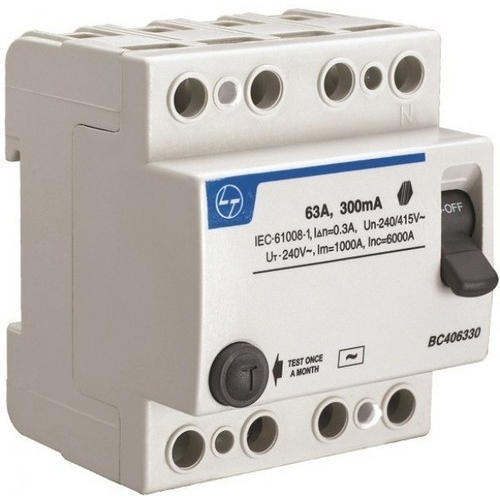

Rccb And Elcb At Best Price In Surat, Gujarat Elepro Equipment

Head-to-Head

4. Comparing Key Features and Benefits

Alright, let’s get down to the nitty-gritty (okay, I tried to avoid it, but it just fits here). When comparing RCCBs and ELCBs, several key differences emerge. As we’ve touched upon, ELCBs depend heavily on a good earth connection, which can be a point of failure if the earthing system isn’t up to snuff. RCCBs, on the other hand, are less reliant on earthing quality and detect current imbalances directly. This makes them more reliable in a wider range of situations.

Sensitivity is another critical factor. RCCBs can detect much smaller leakage currents than ELCBs, offering superior protection against electric shock. This is especially important in environments where there are vulnerable individuals, like children or the elderly. The ability to react faster and to more minute changes makes RCCBs a good choice.

Think of it this way: imagine you’re trying to catch a leaky faucet. An ELCB is like waiting for a puddle to form before grabbing a bucket. An RCCB is like detecting the first few drops and immediately tightening the faucet. Which one is going to save more water (and prevent more damage)? The RCCB, hands down.

Finally, installation and compatibility are worth considering. While both devices require proper installation by a qualified electrician, RCCBs are generally more compatible with modern electrical systems. ELCBs are becoming increasingly obsolete, and it may be difficult to find replacements or upgrades. Taking into account all these factors, RCCBs emerge as the clear winner in terms of overall performance and reliability.

Residual Current Protective Devices Rccb Elcb Rcbo

The Verdict

5. Why RCCB is the Superior Choice for Electrical Safety

After our deep dive, it’s pretty clear that RCCB is generally the better choice for modern electrical safety. While ELCBs served their purpose in the past, RCCBs offer superior performance, reliability, and sensitivity. They are less dependent on the quality of the earthing system and provide a higher level of protection against electric shock.

In most cases, if you’re upgrading your electrical panel or installing new circuits, an RCCB is the way to go. They’re widely available, compatible with modern systems, and offer the best protection for you and your family. Of course, it’s always best to consult with a qualified electrician to determine the specific needs of your home or business.

Don’t think of this as a complete dismissal of ELCBs. They were important stepping stones in electrical safety. However, technology marches on, and RCCBs represent a significant improvement. Choosing an RCCB is like opting for a modern, reliable car with all the latest safety features over a classic, but perhaps less safe, vintage model.

So, the next time you’re thinking about electrical safety, remember the acronyms: RCCB for reliable, current-based protection, and ELCB as a testament to how far we’ve come. Stay safe, and keep those electrons flowing smoothly!
